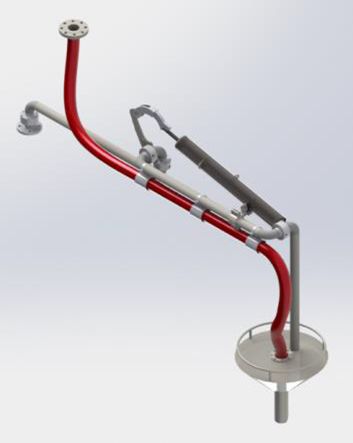

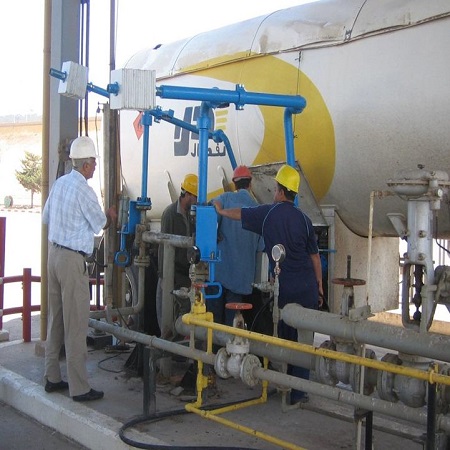

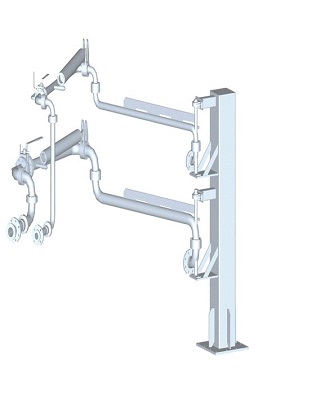

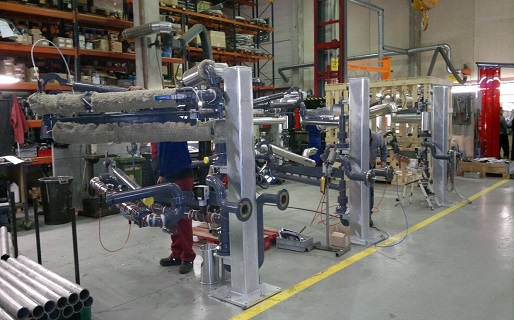

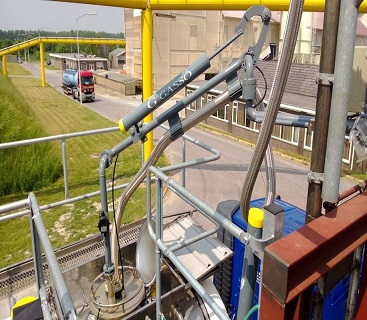

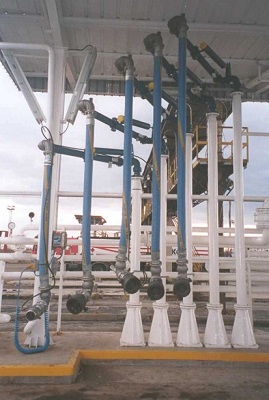

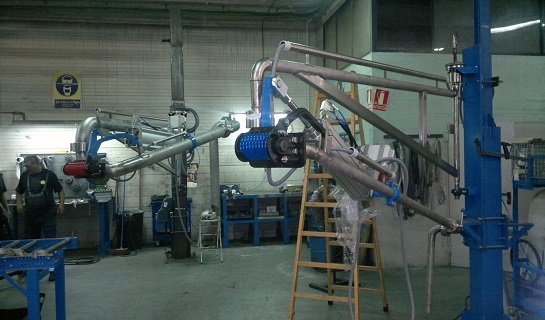

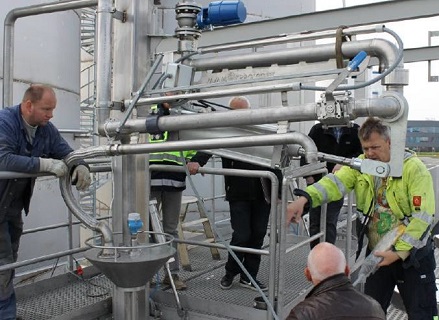

Loading Arms & Hoses

Click each image for more information

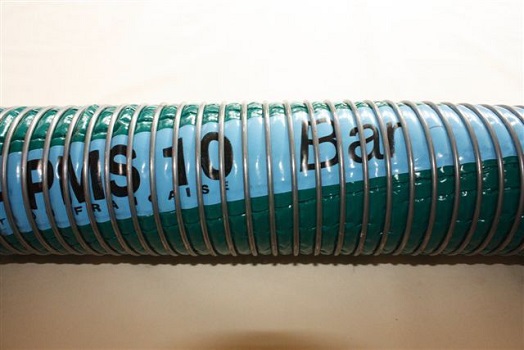

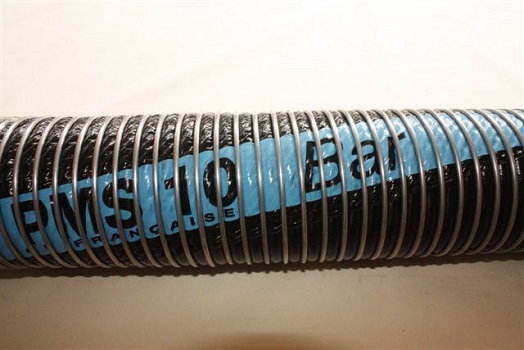

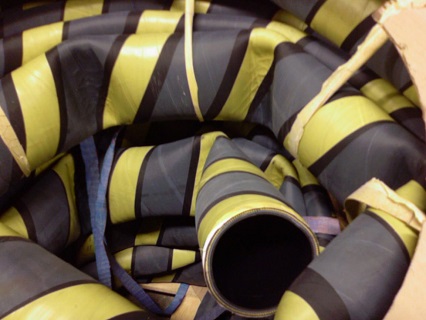

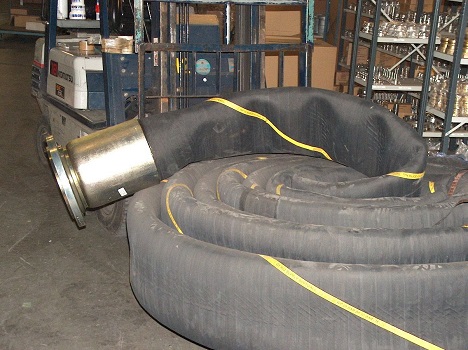

Composite Hoses for Oil and Chemical products

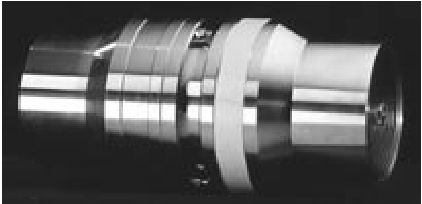

Hoses and couplings for...

    - haulage of petroleum products and servicing of gasoline filling stations
    - transfers from ship to ship, and from ship to terminal/dock
    - offshore supplies from supply vessel to drilling and production platform

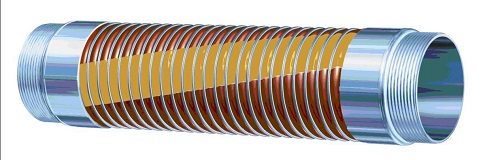

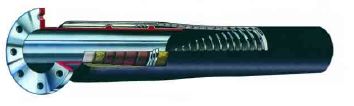

Basic Hose Elements...

- TUBE is wrapped or extruded to resist abrasion and diffusion; and suitable for liquid, gas or solid
- REINFORCEMENT is rayon, polyester or steelwire to contain pressure and ensure dimensional stability
- FILLER to improve diffusion resistance, dimensional stability, reduce vibrations and noise
- SPIRAL is steel, stainless steel or nylon to give vacuum resistance and improve bending radius
- COVER is smooth, corrugated or square corrugated

Contact Us Now
  Oil products Chemical products
Type suction/discharge suction/discharge
Internal-external aluminium spiral galvanized spiral & polypropylene film
Temperature -40°C - 100°C -40°C - 100°C
Working pressure 10 bars 10 bars
Test pressure 40 bars 40 bars
Di int (mm) Di ext (mm) Weight
40 52 1.59 yes n/a
50 61.5 1.89 yes yes
65 78.5 2.86 yes n/a
80 93.5 3.43 yes yes
100 117.5 3.96 yes yes

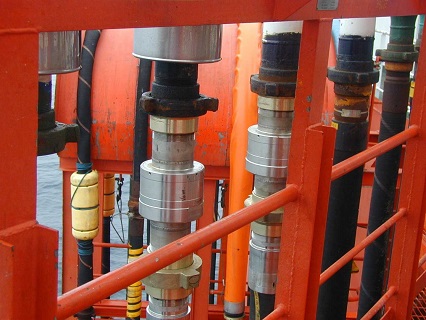

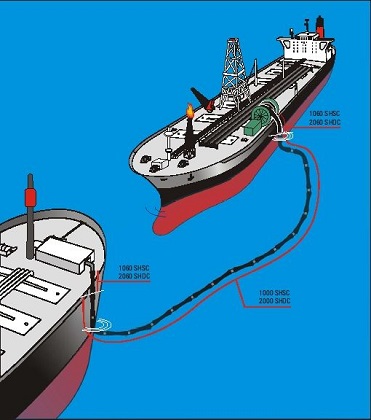

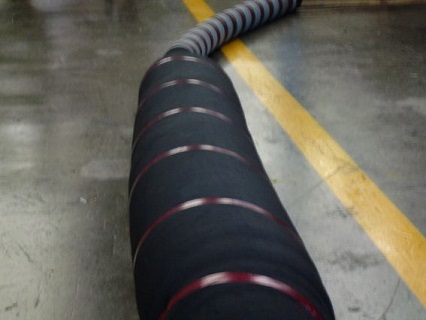

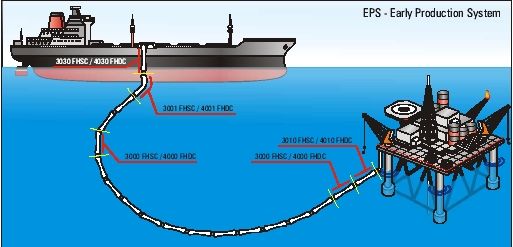

Hoses and couplings for bulk transfers for ship to ship (OCIMF guide 2005), and ship to terminal/dock, offshore supplies from supply vessel to

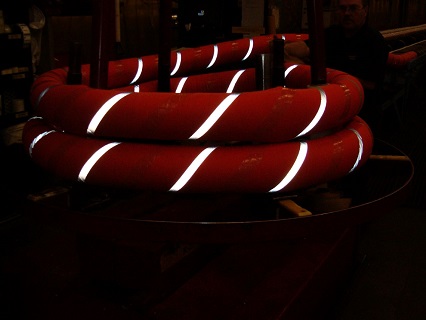

drilling and production platform and floating hose (Easyfloat for Connoco, with Scotch Lite...)



  Hard / Soft Wall 20 bars Hard Wall 40 bars Soft Wall 27 bars
maximum end load (tons)   6  16  10
maximum flow velocity (m/sec)   13  18  15
maximum lenght (m)  122  61  122
supply vessel platform service standard duty heavy duty heavy duty
Suitable for oil, diesel, baryte, methanol, cement yes yes yes
